- 15,000 BTU/hr
- Double Windbreaker
- Magnetic Locking System for easy connection and safety
- Heat Panel System increase fuel efficiency
- Solid Brass Burner
- Piezoelectric ignition
- Carrying Case
Super High Power
Iwatani's advanced technology produces 15,000 BTU/hr
output from solid brass burner.
Double Wind Breaker
Double Windbreaker protects the flame from wind and air conditioning, making it the perfect stove for outdoor use and indoor commercial use.

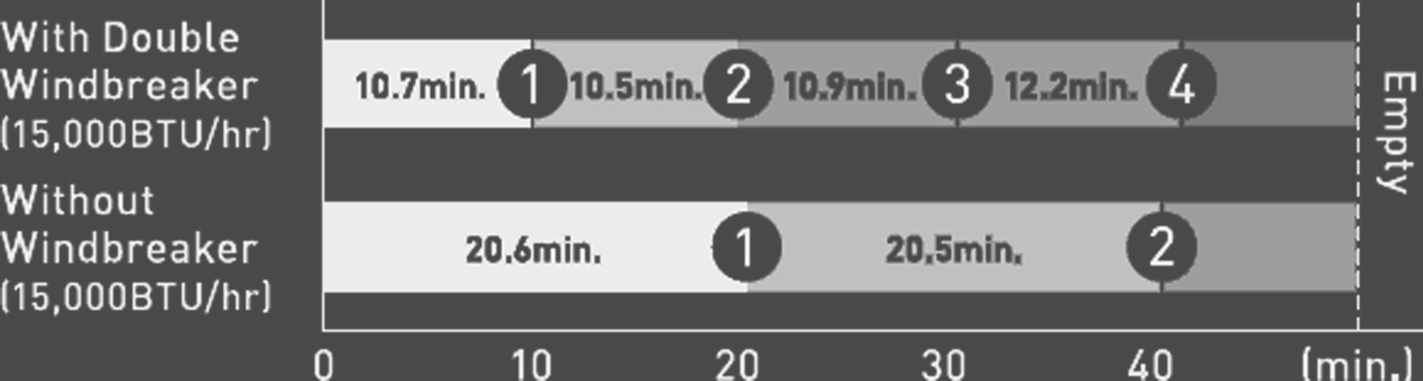

Test
How many times can the stove boil 70 oz
water under 4.5 MPH wind condition?

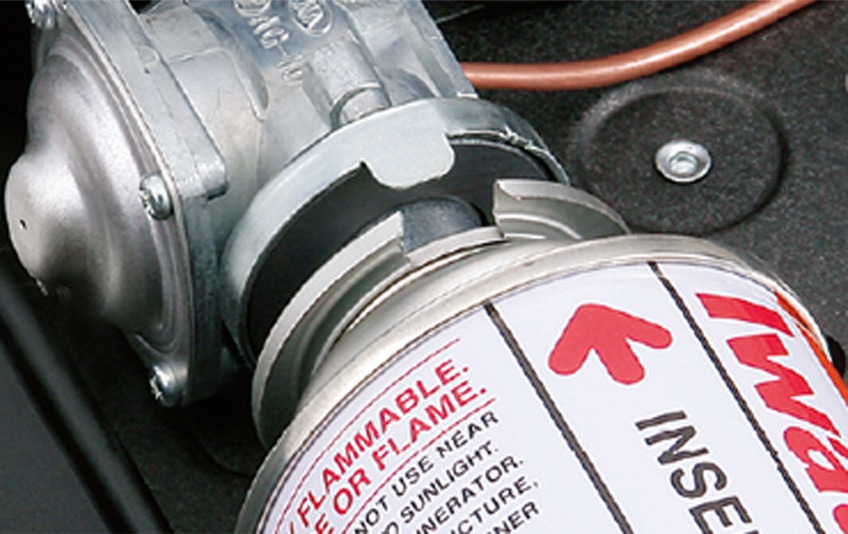

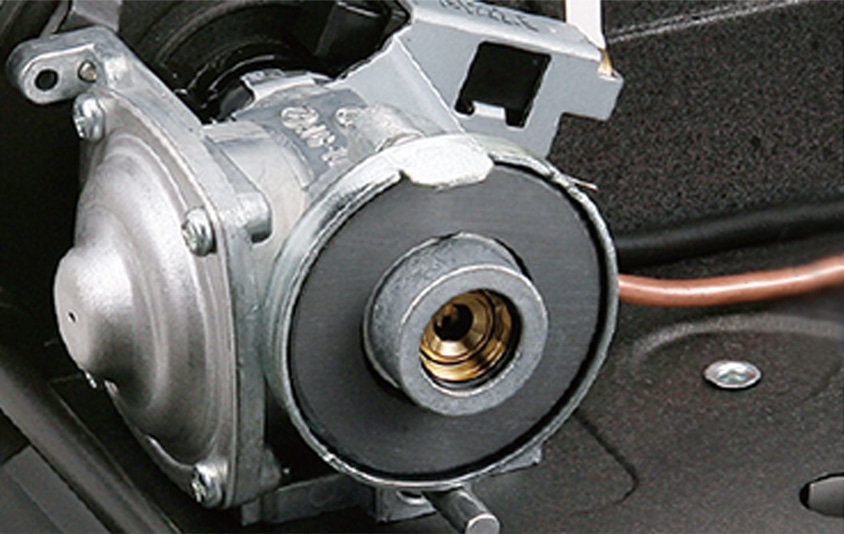

Magnetic Locking System
This lwatani System feature replaces locking levers. Simply
push the fuel can onto the magnet and it locks in safely
making it virtually impossible to load fuel can incorrectly.

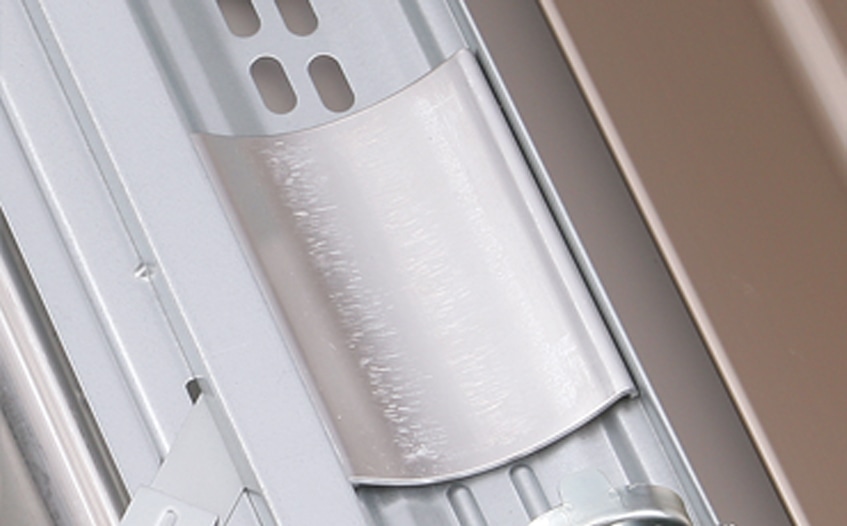

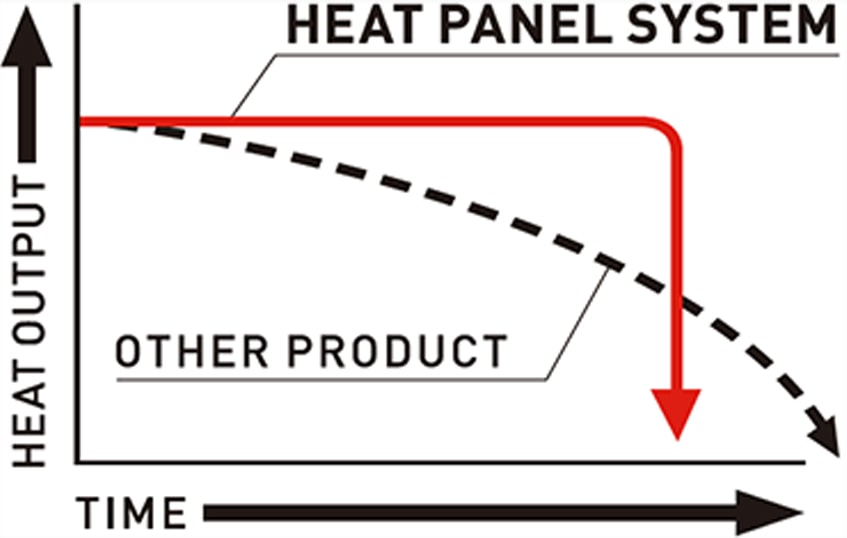

Heat Panel System
lwatani System maintains constant pressure as fuel is being consumed, providing the maximum and consistent output for the life of entire fuel canister. It also allows the stove to utilize the entire can of butane leaving no residual fuel, assuring greater economy and safety.
Safety Features
1. Pressure Sensing Device
Advanced regulator design shuts off the flow of butane which extinguishes the flame if the pressure in the canister rises to unsafe levels. The device activates at 60psi [0.4Mpa] to 90 psi [0.6Mpa].
2. Canister Setting Safety Distance
The canister cannot be attached if the stove is not in the off position. This feature protects against unintentional gas escaping through the burner without ignition.
3. Pressurized Receiving Guide
Two sized 0-rings are built into the receiving guide of the regulator. This double protection feature helps give the canister and regulator an airtight seal.
4. Inverted Drip Pan Prevention Device
This feature protects the use of the stove by not allowing the drip pan to set level when the drip pan is inverted.
Optional Accessories for Iwatani 35FW Portable Butane Stove
Specifications
| Model Name | IWATANI Portable Butane Stove |
| Model | 35FW |
| Product Size [W x L x H] | 13.3” / 337mm x 11.9” / 302mm x 3.7”/93mm |
| Product Weight | 4.2lbs / 1.9kg |
| Ignition | Piezoelectric Ignition |
| Output | 15,000 BTU/hr |
| Burning Time | Approx. 55 minutes [at max. power] |
| Package Size [W x L x H] | 13.9”/354mm x 13.0”/332mm x 3.7”/95mm |
| Package Weight | 5.9lbs/2.7kg |
| Units/Case | 6 |
| Case size [W x L x H] | 24.2”/615mm x 14.2”/360mm x 13.5”/343mm |
| Case Weight | 38.9lbs/17.7kg |
| Unit UPC | 022918 023513 |
| Case UPC | 022918 023537 |
